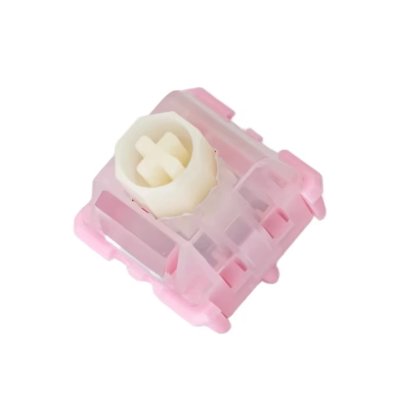

WS Flux Switch Specifications
Typing Style: Linear
Top Housing: PC
Bottom housing: PC
Stem: POM
Initial force: 35士5gf
Total Travel: 3.50士0.10mm
Bottom Out Force: 50士7gf
Trigger stroke can be freely defined
Initial magnetic flux: 115+15Gs (1.6mmPCB)
Bottom-out magnetic flux: 635+50Gs (1. 6mmPCB)
